Linear Optocoupler (CB17606E)

Details
Written by: Newton C. Braga

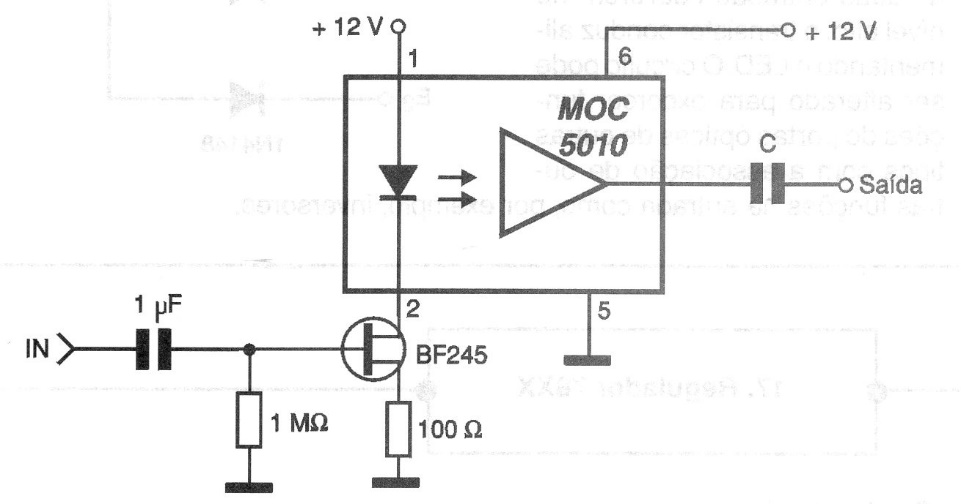

This circuit is suitable for isolating audio signals, as it has very low distortion. The used coupler is not very common in our market and for LED excitation a junction FET is used. Capacitor C can be 100 nF to 1 uF.




| Clique na imagem para ampliar |







Linear Optocoupler (CB17606E)

This circuit is suitable for isolating audio signals, as it has very low distortion. The used coupler is not very common in our market and for LED excitation a junction FET is used. Capacitor C can be 100 nF to 1 uF.




| Clique na imagem para ampliar |
