Power Coupler (CB17561E)

Details
Written by: Newton C. Braga

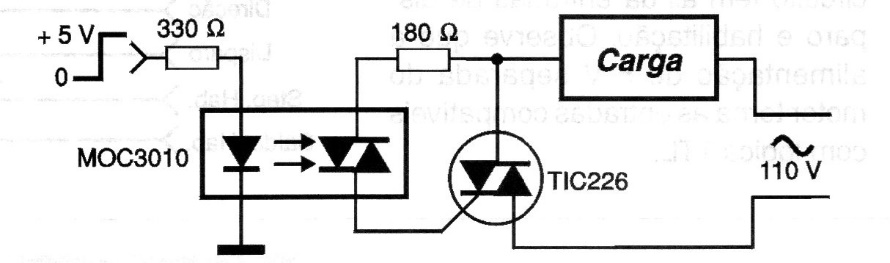

With a 120 ohms resistor this circuit can also be used as a shield for 3.3 V output voltages. The circuit uses an opto-diac enabling the control of triacs connected to the power grid with total isolation.
