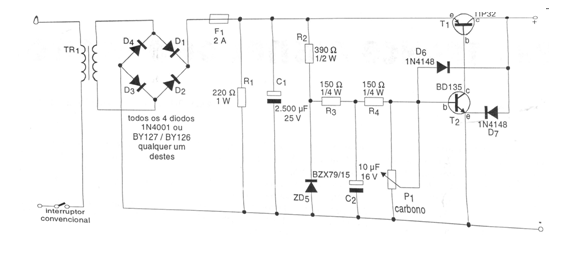

Benchtop Power Supply 0 to 15 V x 1 A (CB17211E)

This traditional transistor source uses only two transistors found in a 1998 documentation. The power transistor must have a heatsink and the transformer has a 15 V or 18 V secondary with 1 A. The zener determines the maximum output voltage.
