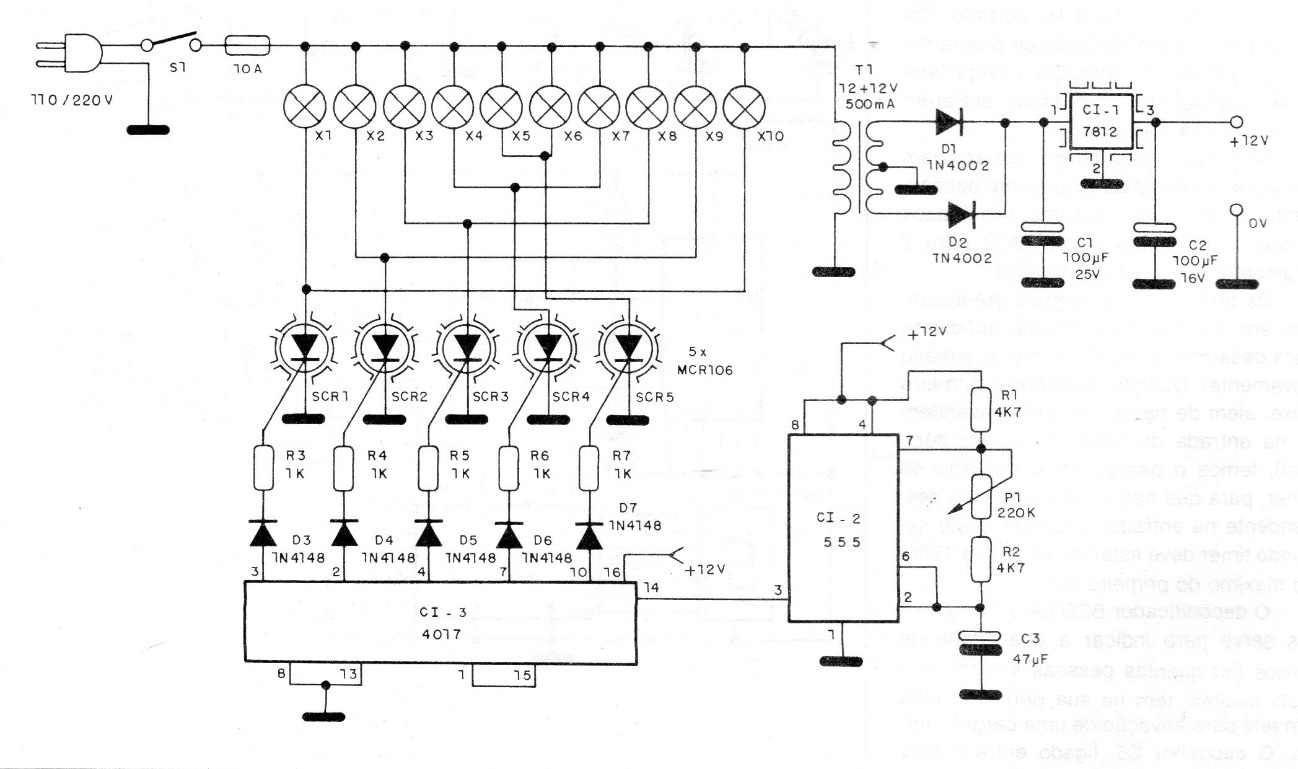

This circuit, found in a 1989 publication, only works with incandescent lamps. The maximum power depends on the SCRs that must be mounted on heatsinks. The speed of the effect is set in potentiometer P1. The voltage regulator integrated circuit must be equipped with a small heat sink.
| Clique na imagem para ampliar |
