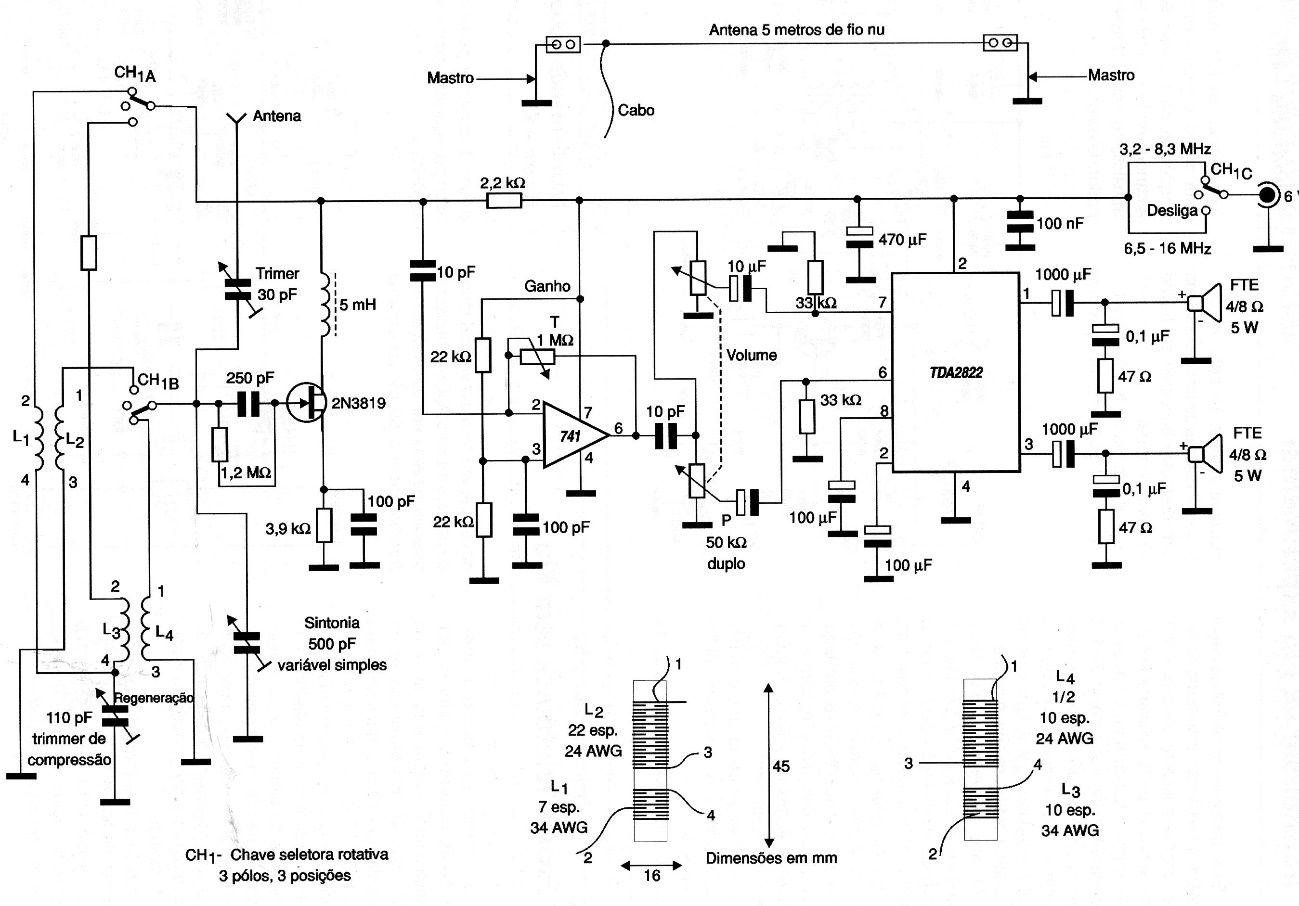

This receiver receives signals in the range of 3.2 to 16 MHz, presenting a good sensitivity thanks to the use of a junction FET. Equivalents like BF245 can be tested. The circuit is from 2008 documentation. The coil data is provided in the diagram itself and the antenna must be external suitable for the reception of signals.
| Clique na imagem para ampliar |
