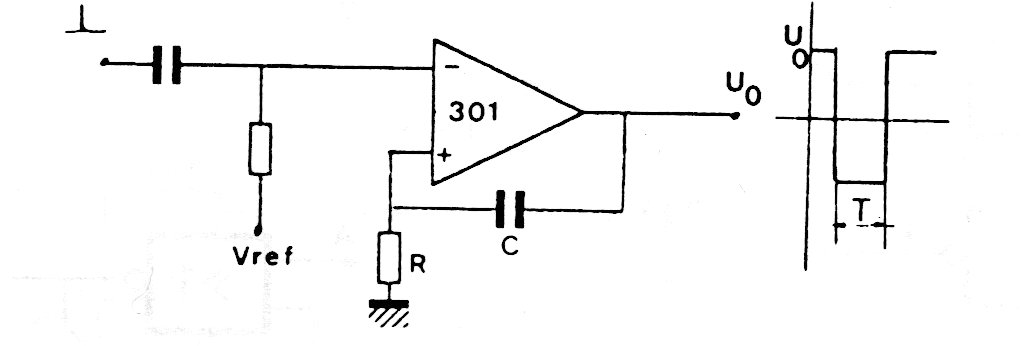

This monostable with operational configuration was obtained in a documentation from the 1980s. The power source must be symmetrical, and the ref resistor has typical values around 10 k. Operational equivalents can be used, and the supply must be symmetrical. R and C determine the duration of the output pulse.
