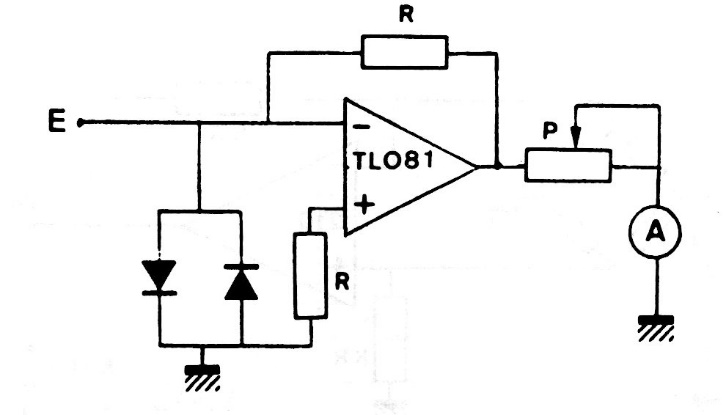

The resistor values depend on the desired gain and the full scale of the indicator instrument. The power supply must be symmetrical and operational JFET equivalents can be used. The circuit is from a Texas Instruments linear integrated manual.
