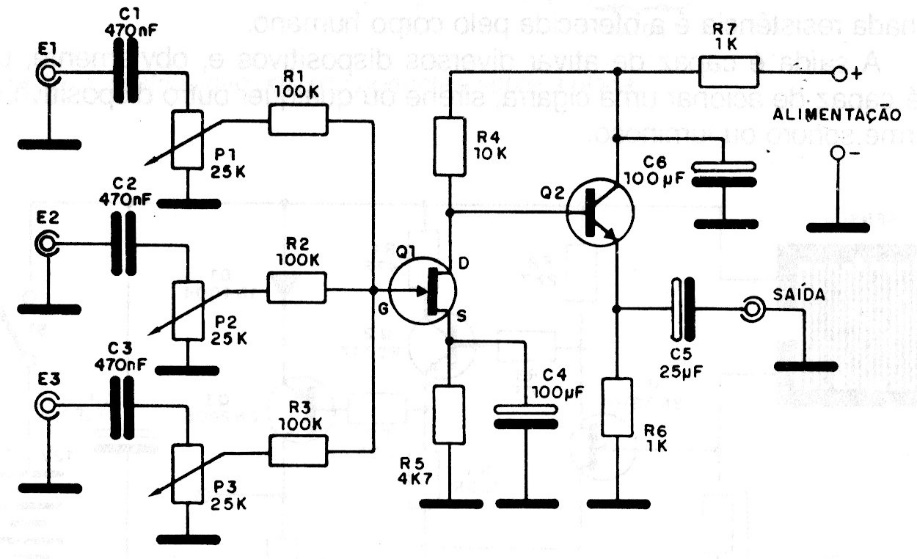

This traditional 3-channel mixer configuration with FET appears elsewhere on this site. The FET can be the BF245 and the bipolar BC548. The source must be very well filtered, and the signal cables must be shielded.
| Clique na imagem para ampliar |
FET-3 Channel Mixer (CB19554E)
- Details
- Written by: Newton C. Braga
