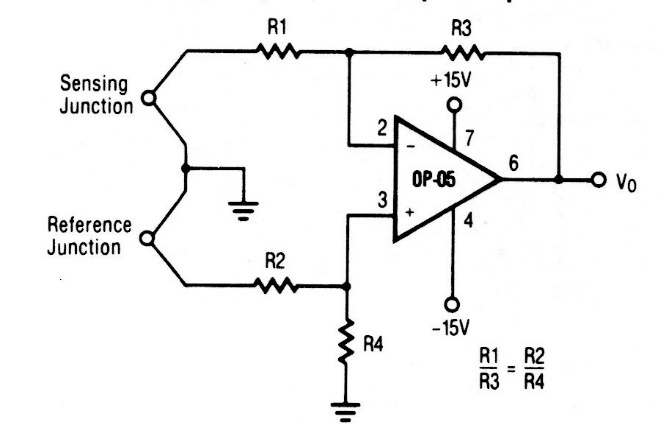

The operational amplifier used in this configuration is of an uncommon type today. The circuit can be implemented with more modern operational amplifiers, observing the relationship of values between the resistors and that the source is symmetrical.
