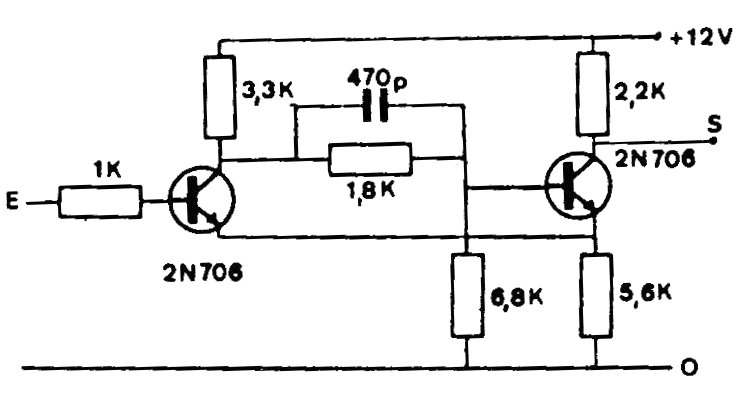

Two Transistors Schmitt Trigger (CB19895E)

This Schmitt trigger was found in old documentation. The transistors can be of the general-purpose type like BC548 or even 2N2222.

| Clique na imagem para ampliar |
