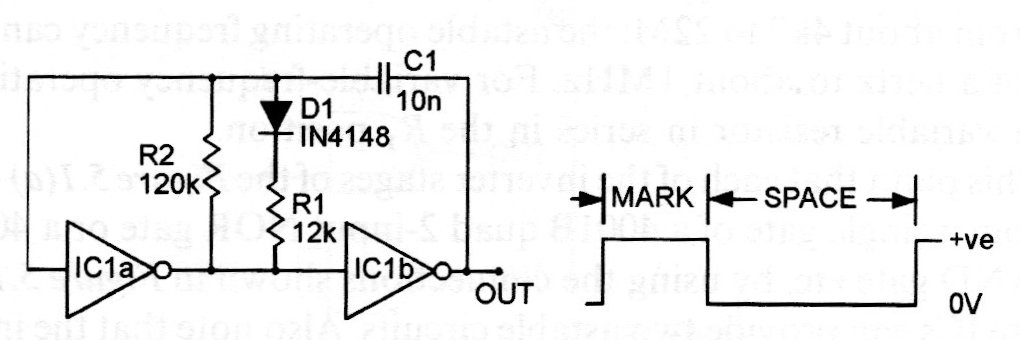

This oscillator can use inverters or connected AND or NAND gates as such. The signal produced with the indicated component values is 1 kHz and its waveform is the one shown in the figure. The supply can be done with voltages of 3 to 12 V typically.
