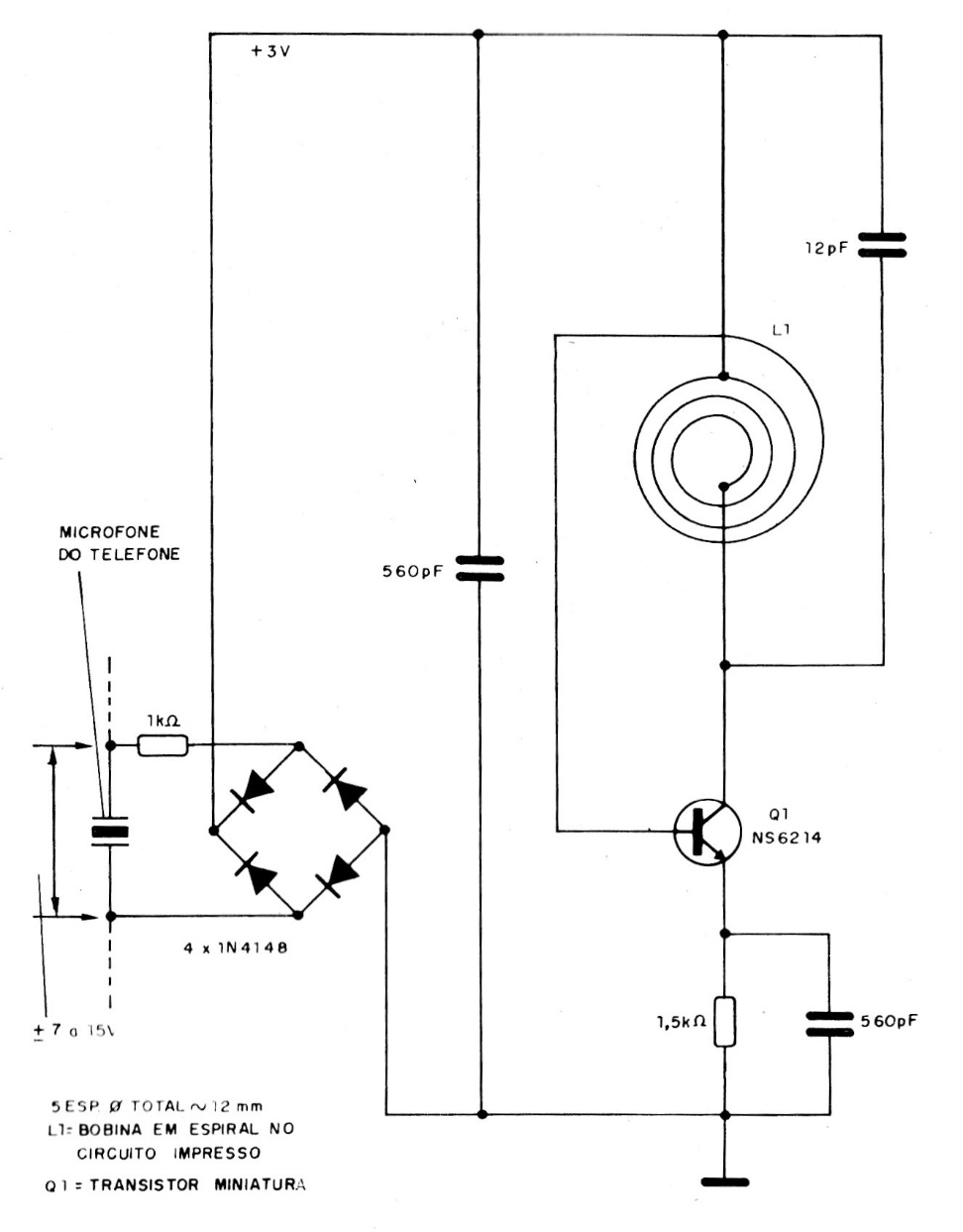

This circuit was found in a 90's espionage publication and serves for analog lines. The circuit is simple, emitting a signal in the FM range, whose frequency is adjusted by tightening or stretching the coil. The transistor can be the BF494 and the range is in the order of a few tens of meters.
