Ultrasonic Transmitter (CB19931E)

Details
Written by: Newton C. Braga

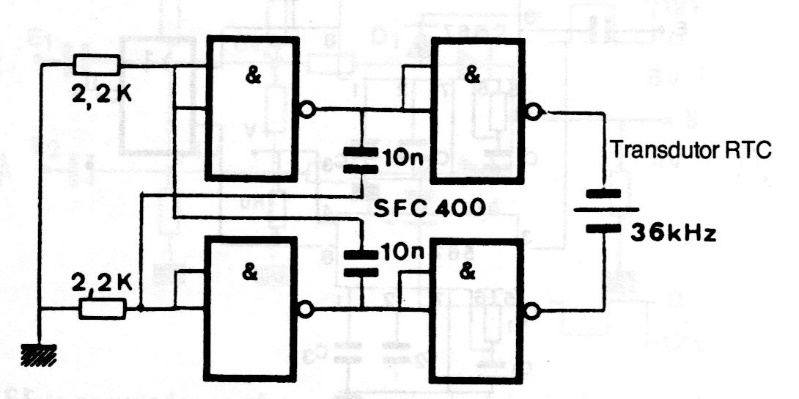

The ports used in this ultrasonic remote-control transmitter are TTL, requiring a 5 V supply. The transducer is a piezoelectric type, not very common today.




| Clique na imagem para ampliar |
