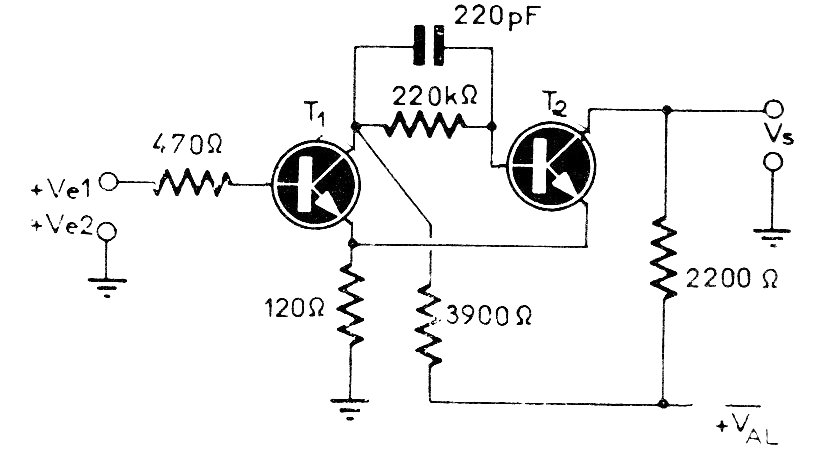

This trigger circuit was found in old European documentation, but it can be implemented with modern switching transistors like the 2N2222. The circuit has a time constant given by the capacitor that can be changed. The supply voltage can be 6 to 24 V.
