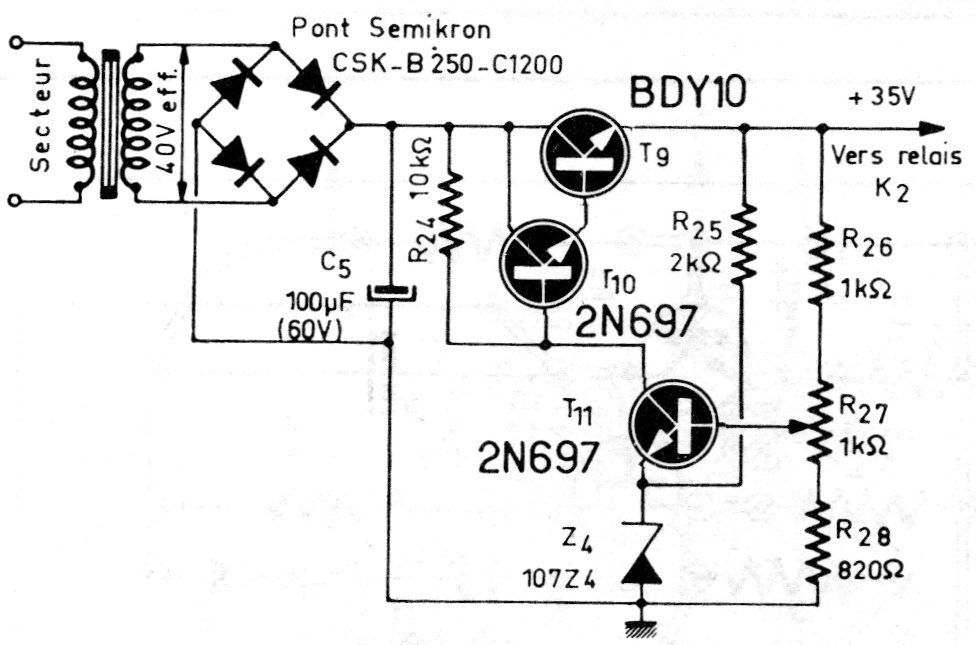

We found this source in documentation from the 1980s. The power transistor can be the BD137 and the output voltage is determined by the zener diode, which can be changed. The source is indicated for powering relays in battery chargers. The transformer has current according to what is desired at the output.
| Clique na imagem para ampliar |
