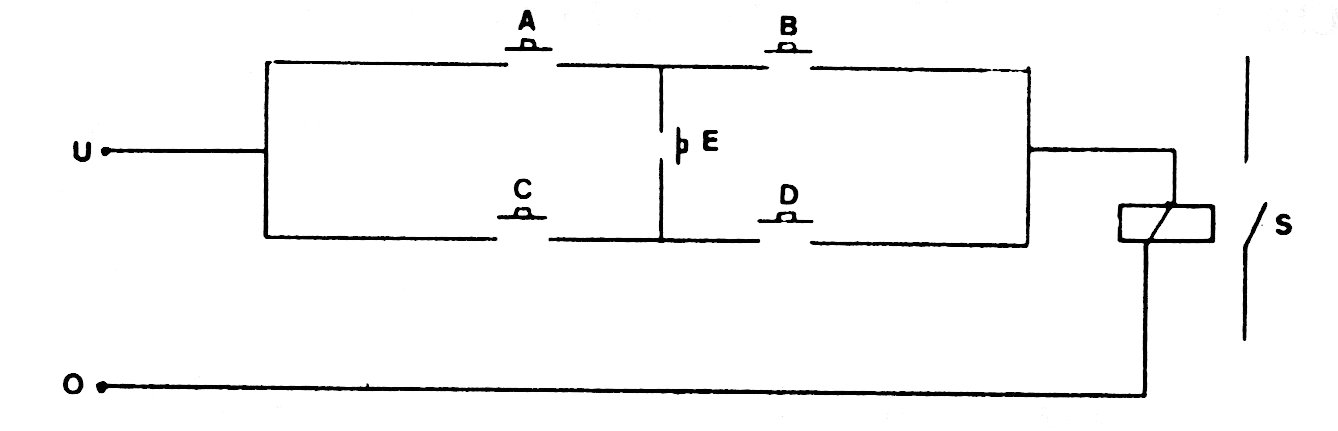

In the figure we have the way to simulate the function S = AB + CD + E (CB + AD) using 5 switches or sensors and a relay with voltage according to the supply. Note that any function can be simulated with these components.
