Light Operated Relay (CB19968E)

Details
Written by: Newton C. Braga

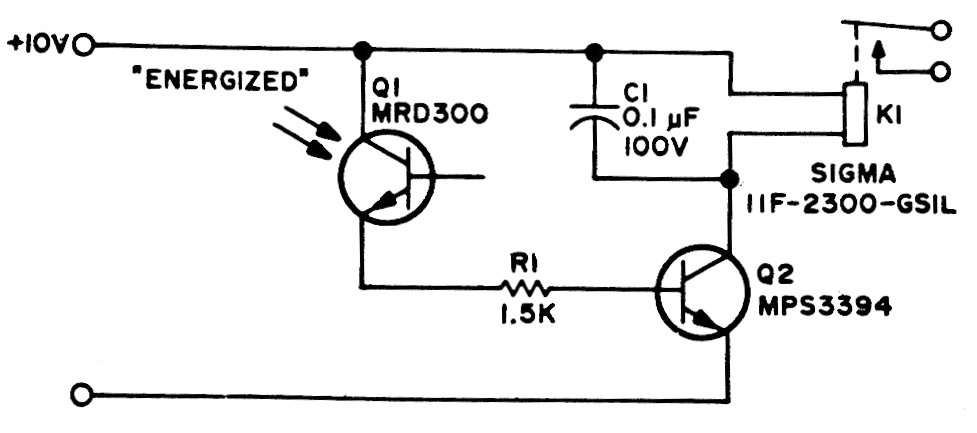

This circuit is from an American manual from 1975. The transistors are types of the time, but equivalents can be used, as well as the relay that can be according to the supply voltage.




| Clique na imagem para ampliar |
