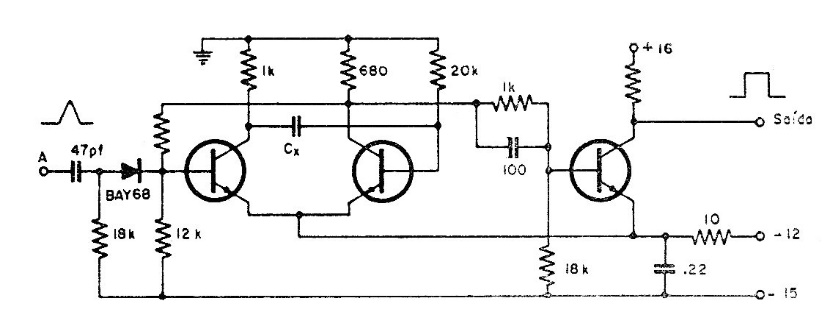

The transistors of this old circuit from the 60s can be the BC548, in a current version. The duration of the output pulse depends on the capacitor Cx which can have values according to the input pulse between 100 pF and 1 uF. Circuit power can also vary, with minor changes in some circuit resistors.
