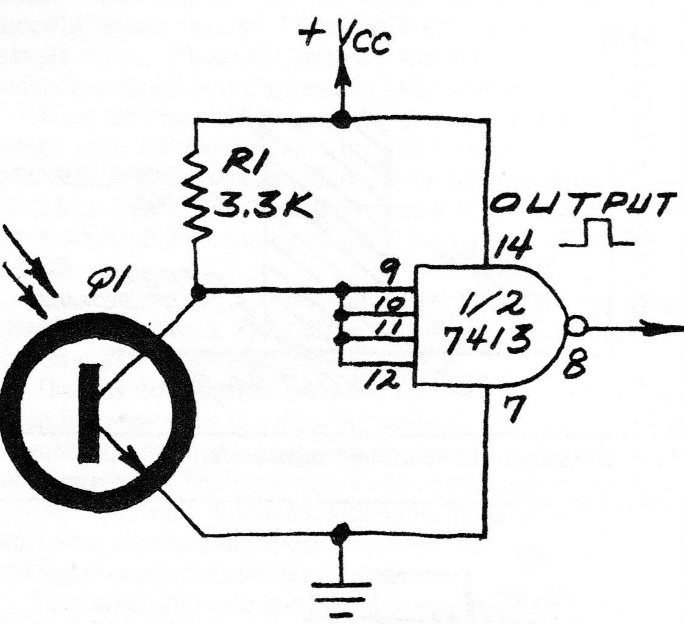

In the figure we show how to implement a TTL photo-trigger with the 7413. This circuit can be used as an input shield for microcontrollers, since its supply is 5 V, and the logic is compatible. The sensitivity can be changed by changing the value of R1.
