Capacitance Meter (CB19855E)

Details
Written by: Newton C. Braga

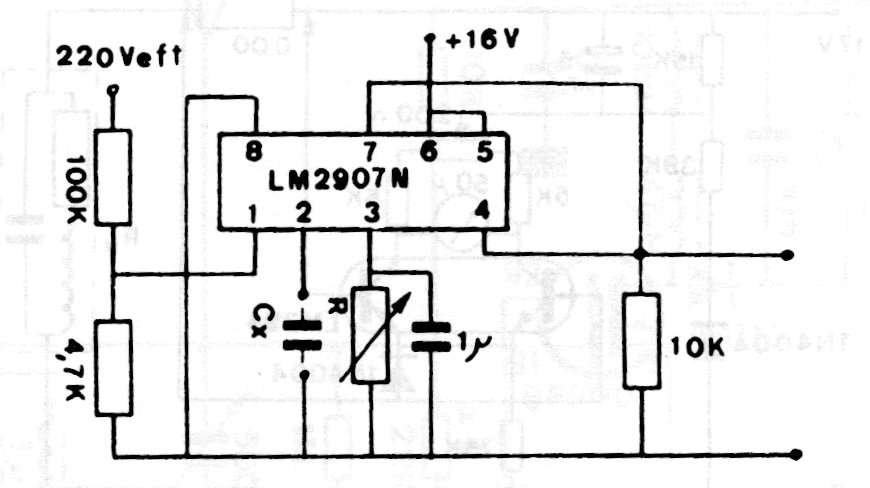

The integrated circuit used in this application is uncommon today. The circuit converts capacitances into voltages from 1 to 10 V for a capacitance range from 10 uF to 100 uF.
