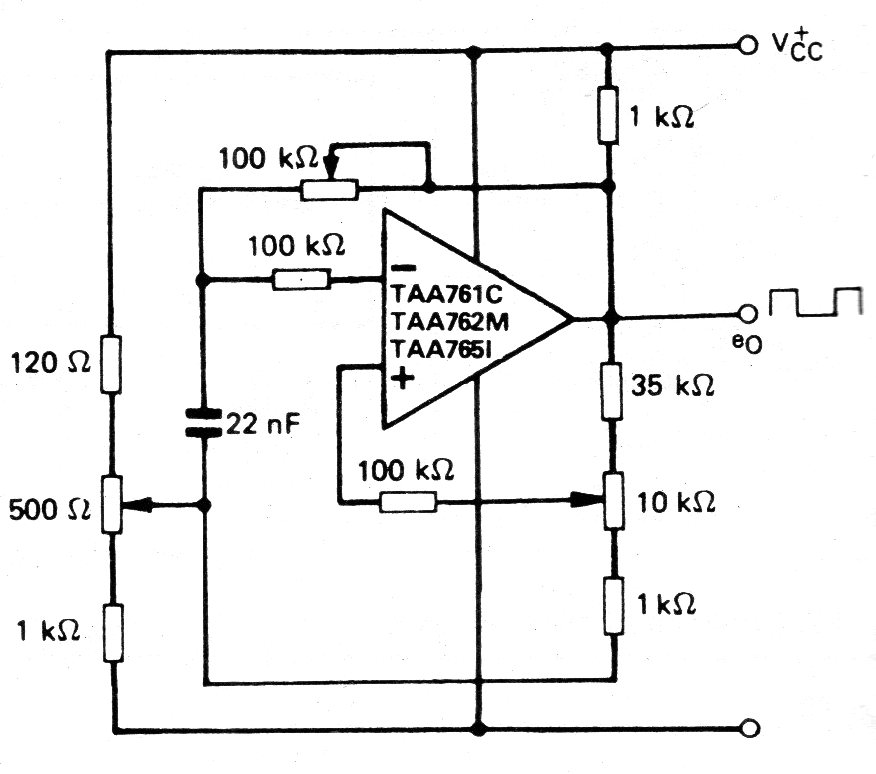

This circuit, from the 80s, uses an operating system of the time to generate pulses in frequency and duration that can be adjusted in the potentiometers. The power supply does not have to be symmetrical and the voltage is according to the operational.
| Clique na imagem para ampliar |
