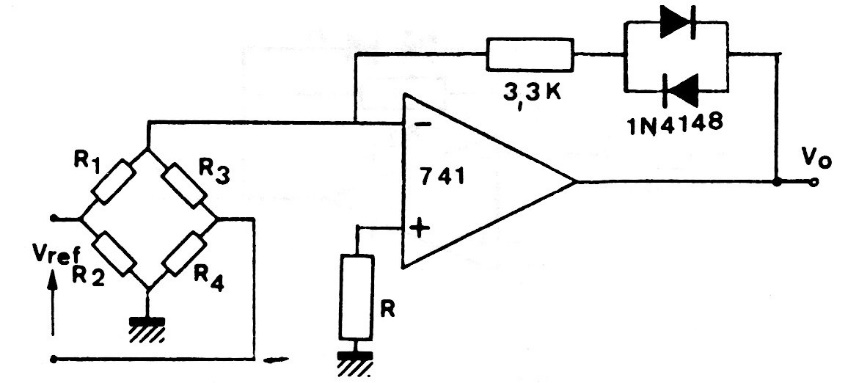

The operational amplifier used is the 741, but the configuration is valid for other operational amplifiers. The source must be symmetrical, and the output voltage must be applied to an indicator step. The circuit is a manual of linear integrated circuits. The circuit has a non-linearity characteristic given by the diodes.
| Clique na imagem para ampliar |
