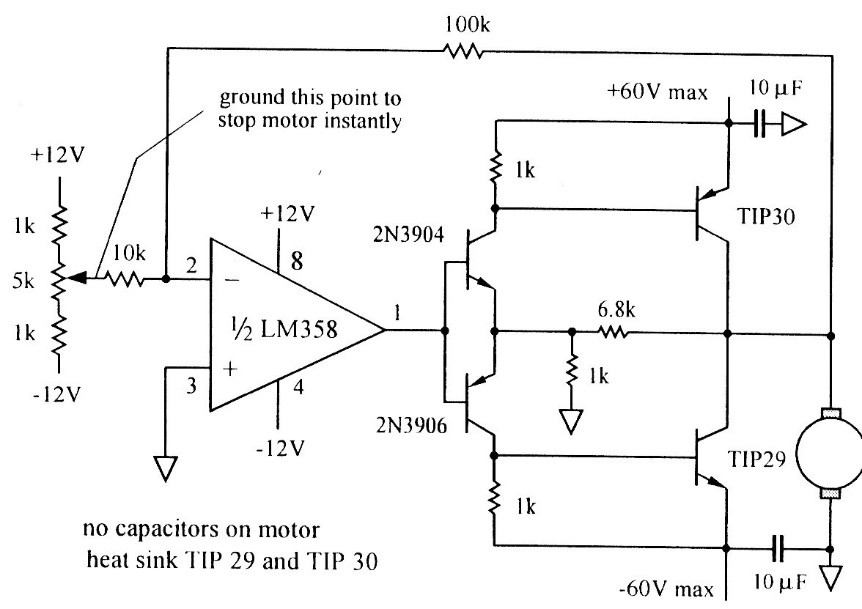

We found this circuit in an American publication from the 90s. The transistors must be provided with appropriate heat sinks and the operating circuit must be powered with a lower voltage.
| Clique na imagem para ampliar |
60 V Bidirectional Motor Control (CB19568E)
- Details
- Written by: Newton C. Braga
