High Speed Amplifier OP05 (CB19711E)

Details
Written by: Newton C. Braga

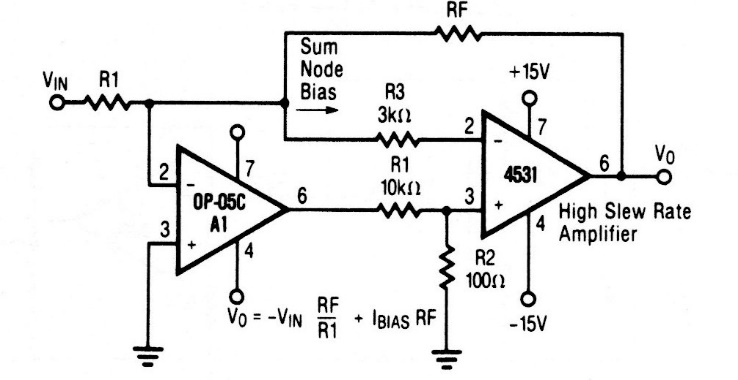

The operational amplifier used in this application is uncommon today. This Raytheon circuit can be designed with equivalent operational and the power supply must be symmetrical.




| Clique na imagem para ampliar |
