Astable 741 (CB19825E)
- Details
- Written by: Newton C. Braga

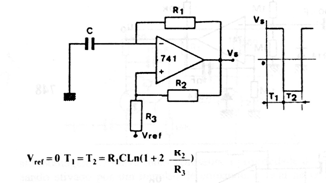

This circuit that generates rectangular signals, can also be implemented with other operational ones. The formula for calculating the components is given next to the diagram.
