Symmetrical 6 V Power Supply (CB19247E)

Details
Written by: Newton C. Braga

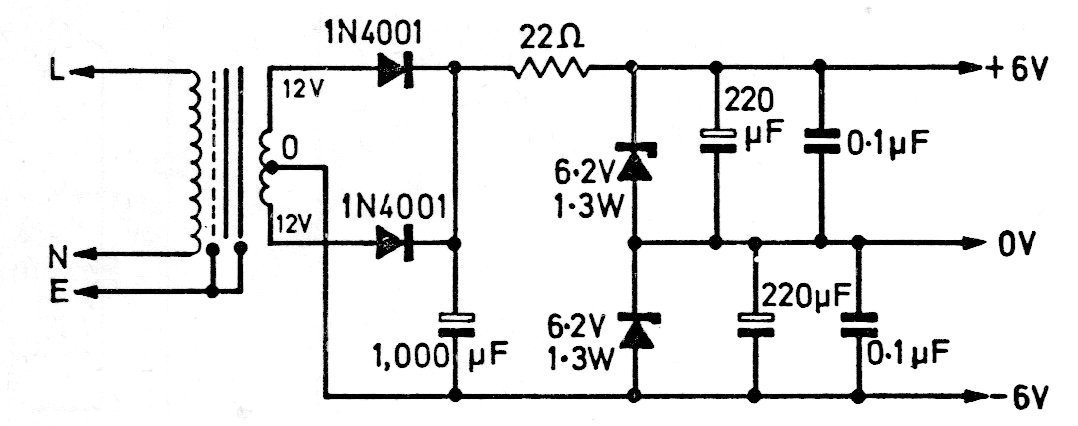

This simple source with zener regulation is ideal for experimental projects with operational amplifiers. Other voltages can be obtained by changing the zeners and the transformer.
