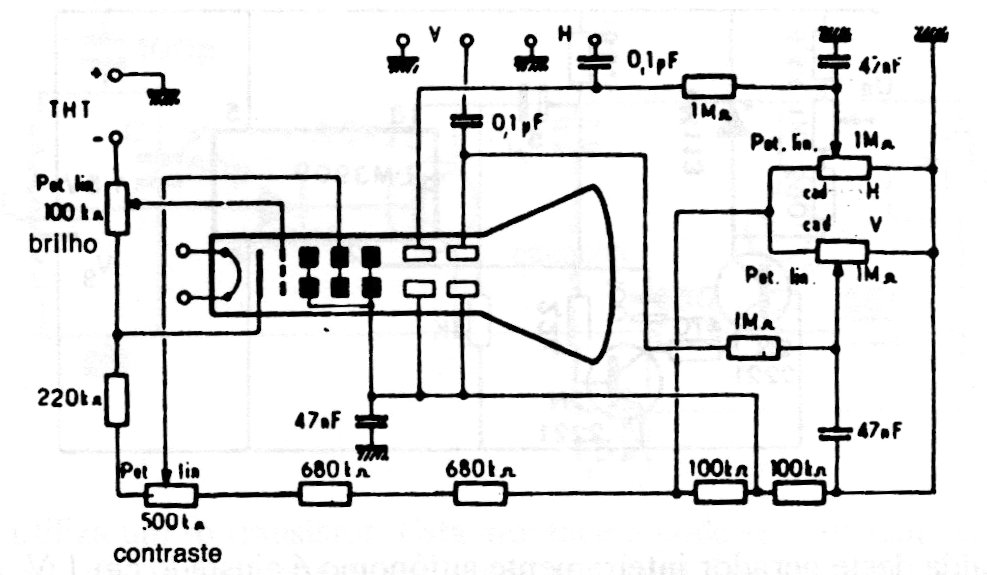

This circuit is from old documentation. It shows how to implement the voltage adjustments of an oscilloscope TRC. The circuit is valid for those who recover devices with this type of component.
| Clique na imagem para ampliar |
TRC Adjustment Potentiometers (CB19854E)
- Details
- Written by: Newton C. Braga
