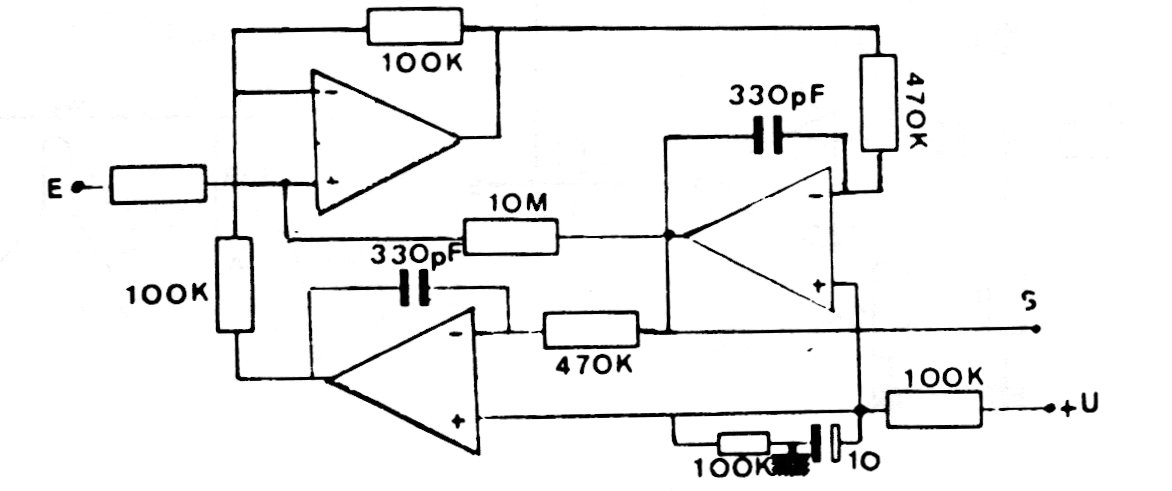

This filter has the components calculated for the frequency of 1 kHz but can be changed. The input resistor can be 100k and the source symmetrical. Any operational amplifier can be used.
| Clique na imagem para ampliar |
1 kHz Band Pass Filter (CB19689E)
