Operational Crystal Oscillator (CB19830E)

Details
Written by: Newton C. Braga

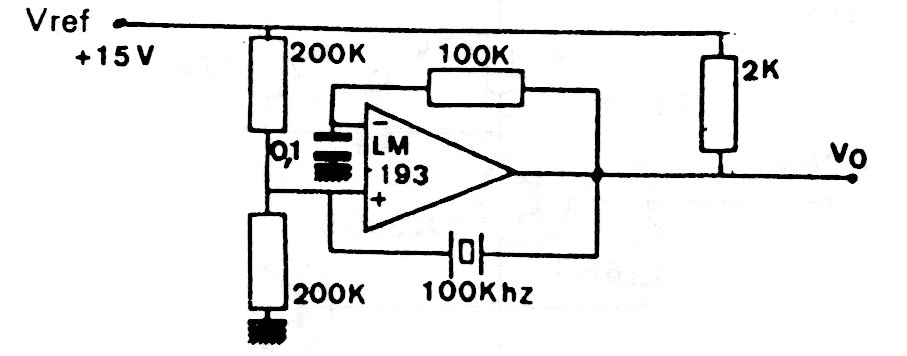

Equivalent operational amplifiers can be used on this crystal-controlled oscillator. The circuit is from old documentation and can be changed to operate on other frequencies.
