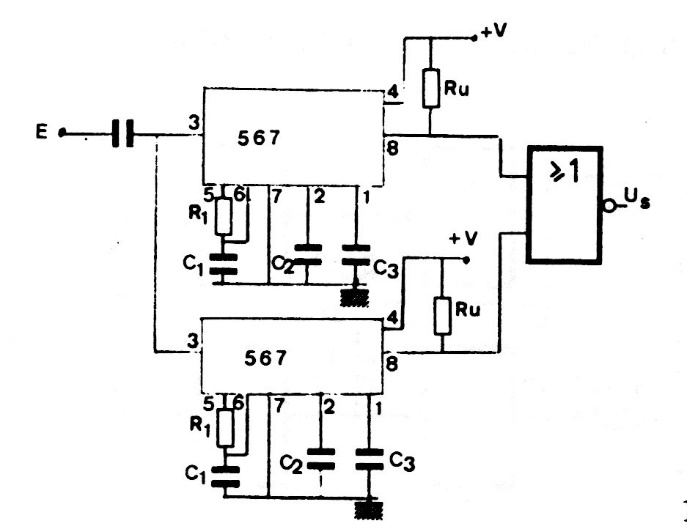

Using two 567 PLLs, this circuit recognizes two audio tones in sequence providing a signal for a logic output. The circuit can be powered with 5 V working as a shield. R1 and C1 determine the tone and the rest of the capacitors are from 10 nF to 100 nF.
