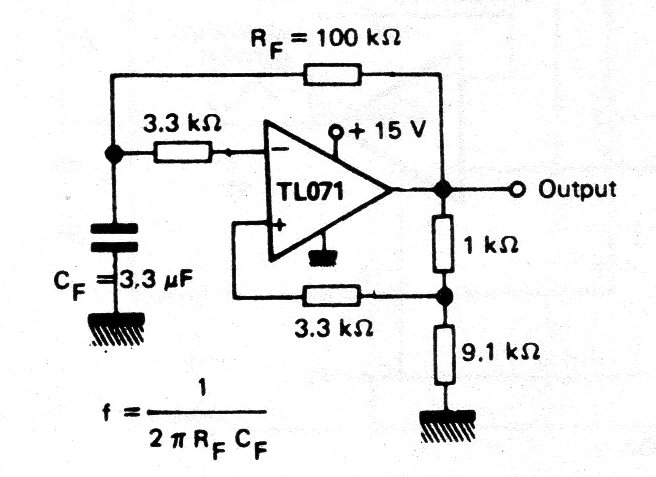

This circuit, found in documentation from the 1980s, uses an operational amplifier from that time. However, the same circuit can be implemented with modern operators. The circuit does not require symmetrical power and the voltage depends on the operational amplifier used.
| Clique na imagem para ampliar |
