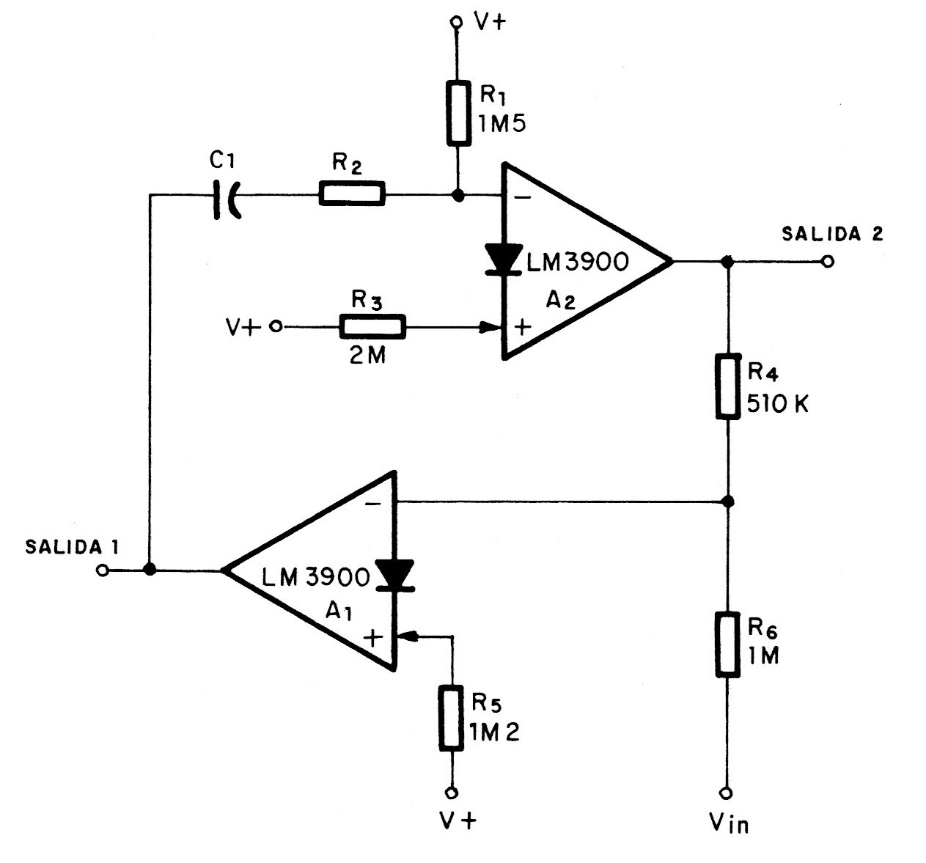

This circuit consists of a monostable multivibrator using the LM3900 transconductance operational amplifier. The circuit is from an old documentation about operations and the time constant is given by C1 and R2.
| Clique na imagem para ampliar |
Monostable LM3900 (CB19295E)
