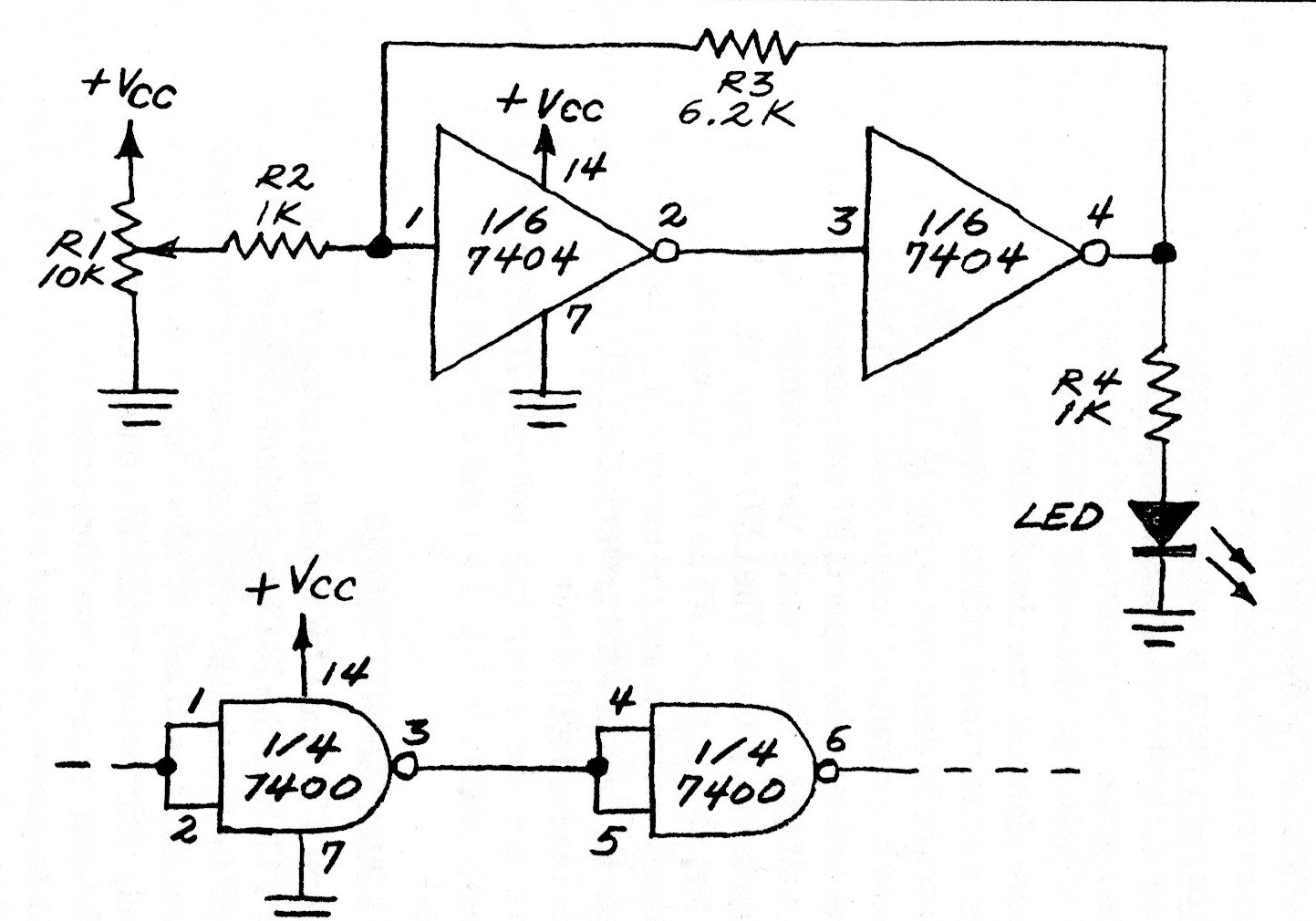

With this circuit we can demonstrate the operation of a Schmitt trigger using TTL logic. The circuit is from an American publication from the 1980s and must be powered with 5 V. We can use both the 7404 and the 7400 configured as an inverter, shown in the same figure.
