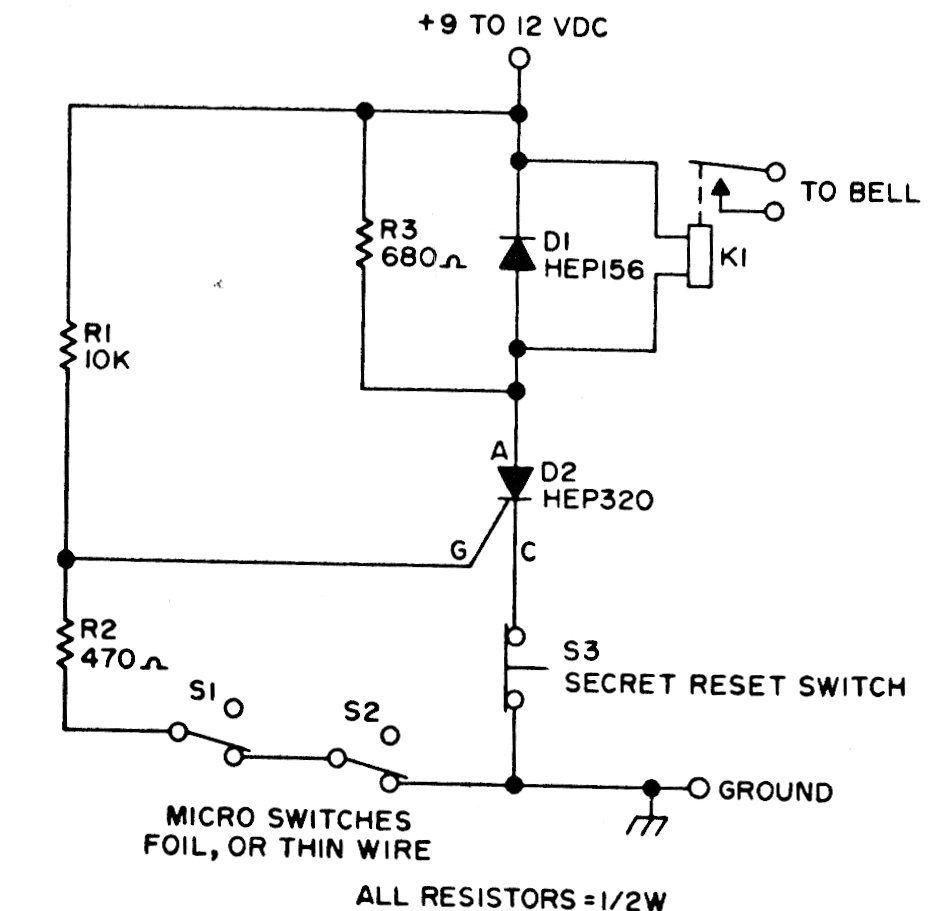

This circuit is from an American documentation from 1975. However, the circuit is still current, since any SCR can be used, and the supply is made according to the relay used. The number of sensors is unlimited.
| Clique na imagem para ampliar |
SCR Alarm (CB19965E)
- Details
- Written by: Newton C. Braga
