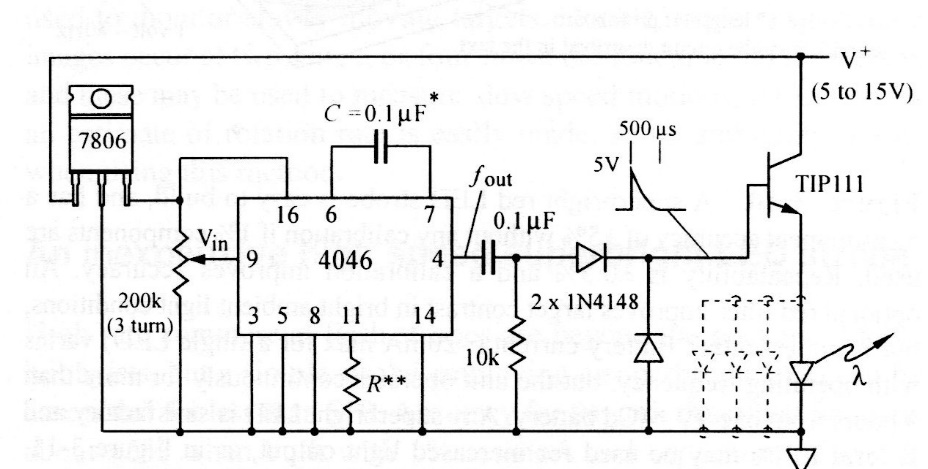

CMOS 4046 (PLL) is not very common. In this circuit it generates short pulses to excite a high brightness white LED. The circuit is used in robotics and mechatronics to measure the speed of motors or other rotating parts. Several LEDs can be connected in parallel for greater power.
| Clique na imagem para ampliar |
