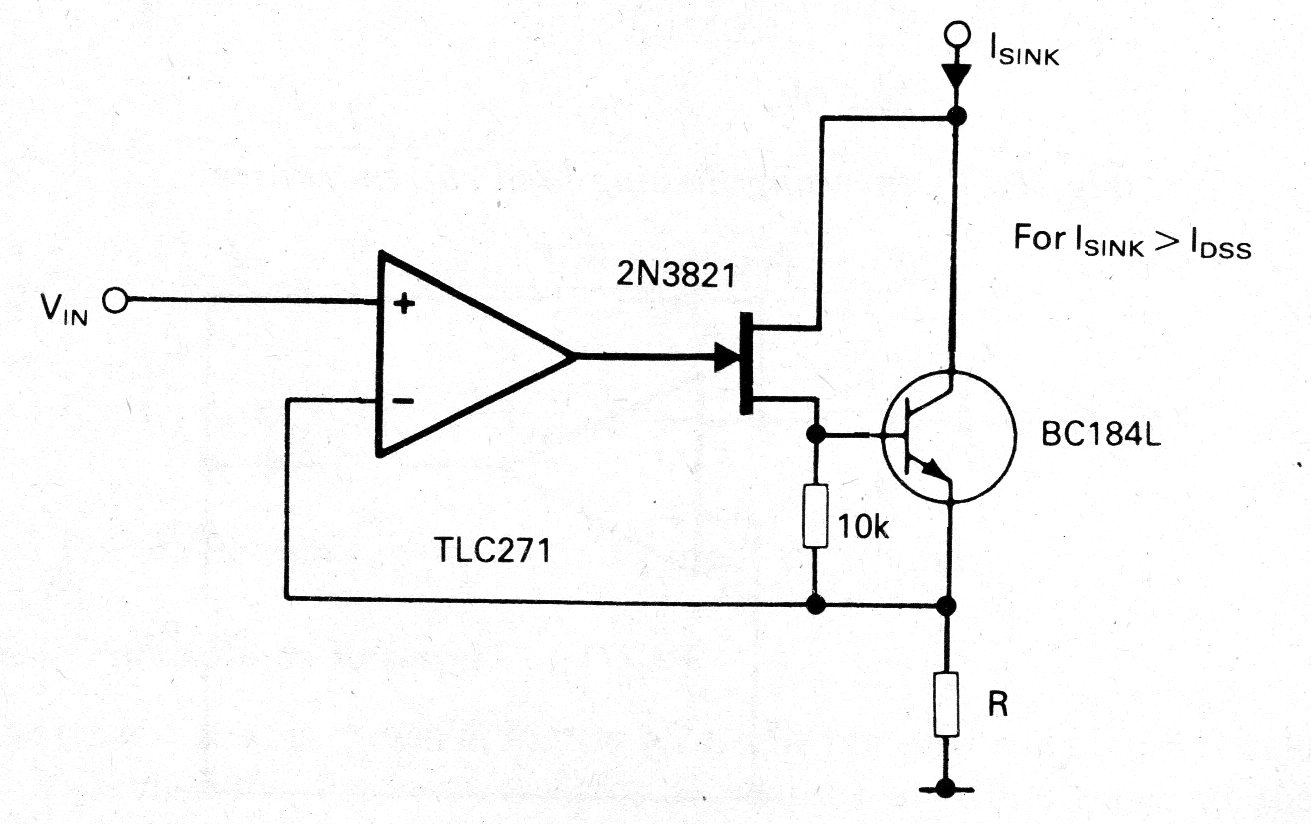

This circuit is from an application manual for linear instruments from Texas Instruments. The operational used is the TLC271, but the configuration applies to other operational ones. The output current depends on the transistor and the resistor R.
