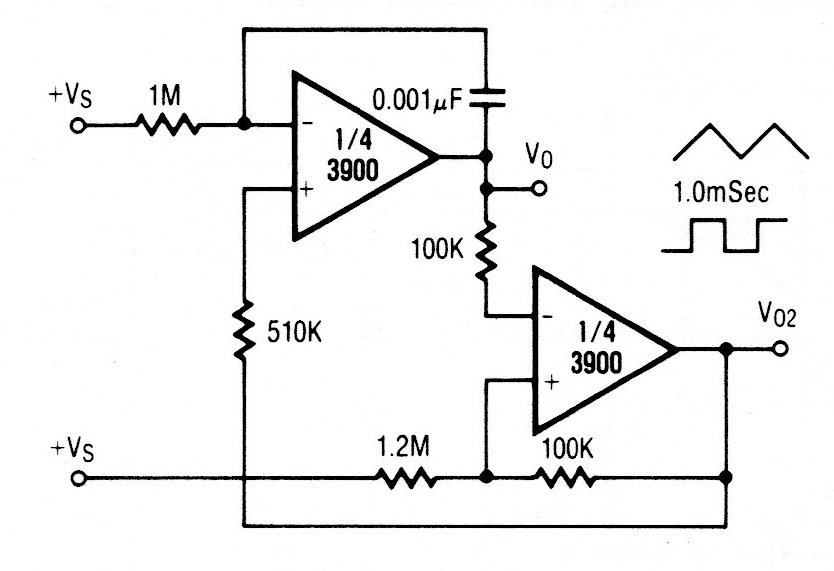

Square and Triangular Generator 3900 (CB19707E)

Details
Written by: Newton C. Braga



Raytheon's used integrated circuit is no longer common today. The circuit was obtained in a documentation from the 80's and must be powered by a symmetrical source.




| Clique na imagem para ampliar |
