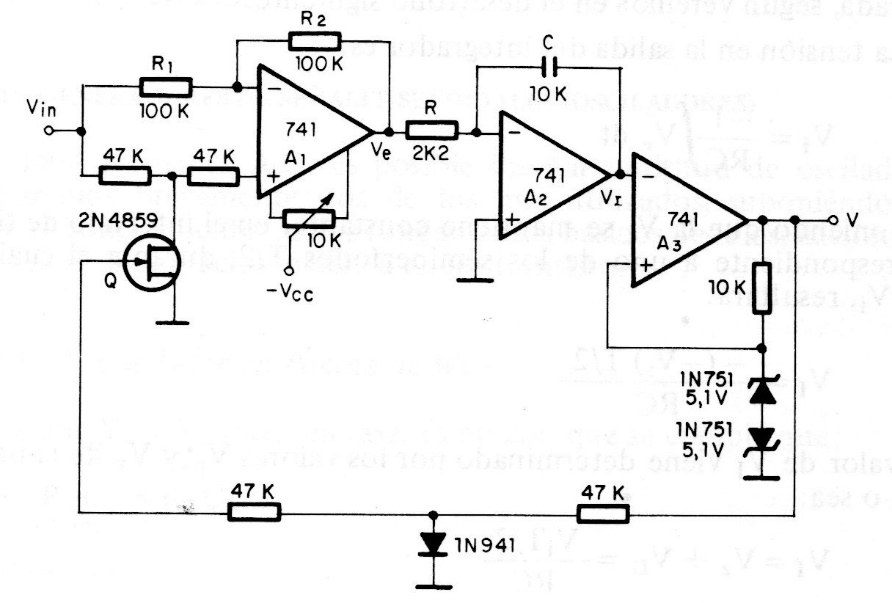

We found this circuit in a European documentation from the 90's, but the circuit is current, as it can be implemented with still common components. The circuit requires a symmetrical source of 16 to 15 V and the frequency range depends on C. With 10 nF it will be between 12 Hz and 20 kHz.
| Clique na imagem para ampliar |
