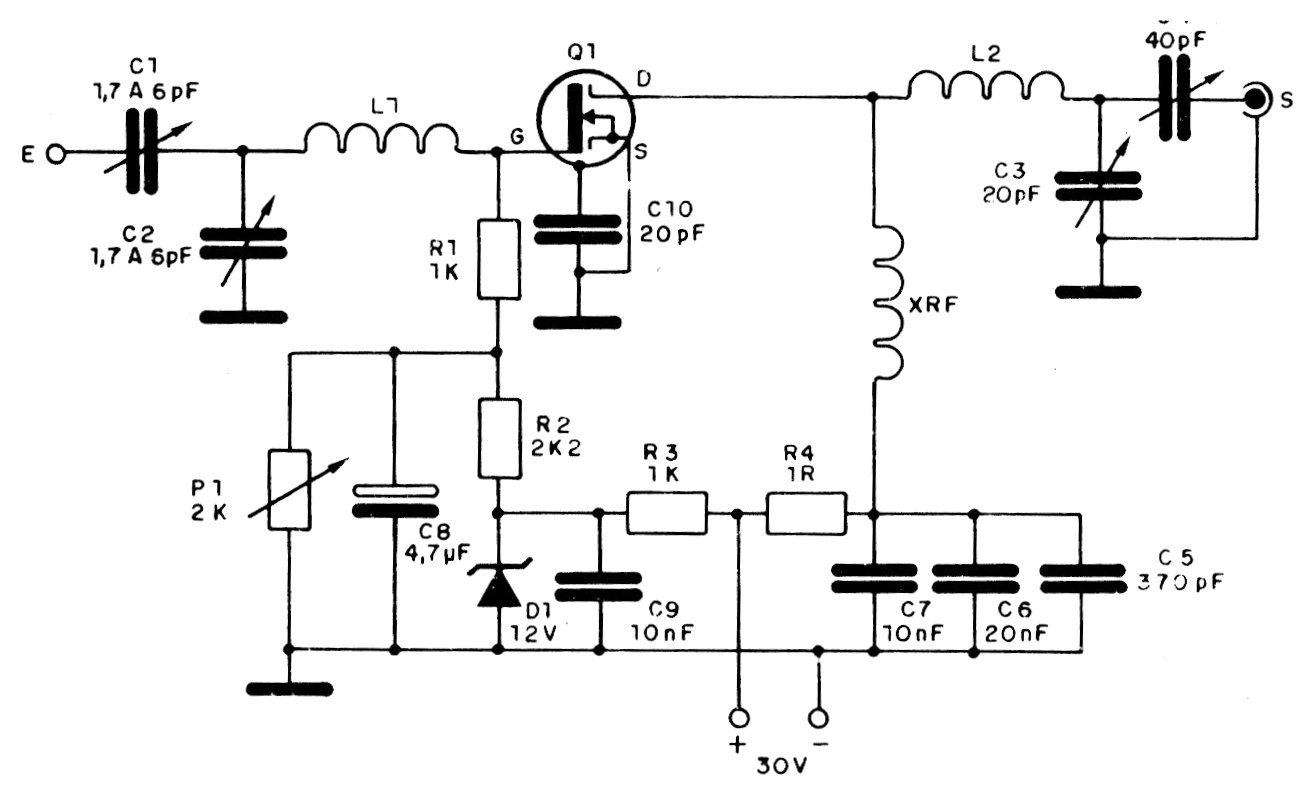

This circuit amplifies VHF signals in the two-meter range and is very critical, especially regarding the coils. The circuit is from 1989 documentation and the MOSFET is of the double-gate type not very easy to obtain today.
