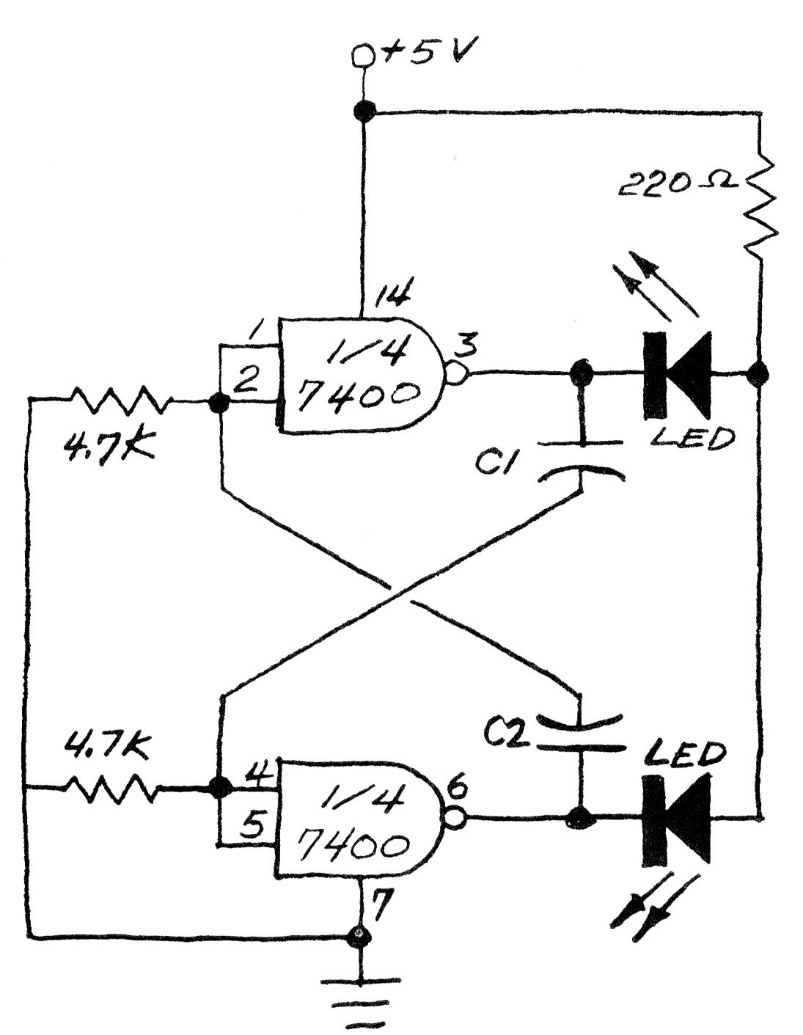

This astable TTL with the 7400 integrated circuit appears elsewhere in this section. This version is from an American documentation from the 80's and must be powered with 5 V. the capacitors C1 and C2 determine the frequency and can have values between 10 and 100 uF.
