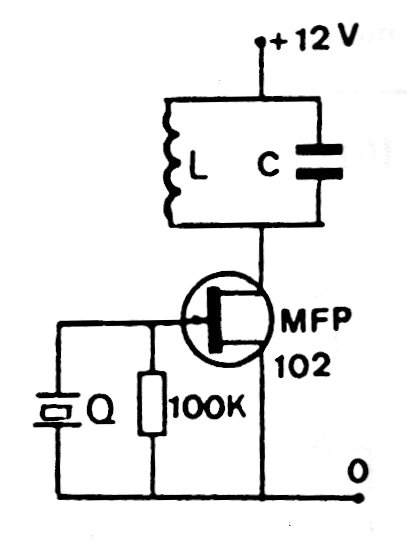

The frequency of the LC resonant circuit must be the same as that of the crystal and the JFET admits equivalent as the BF145. The circuit can oscillate at frequencies of a few tens of megahertz.
.
JFET Crystal oscillator III (CB19850E)
