Blinker (CB19872E)

Details
Written by: Newton C. Braga

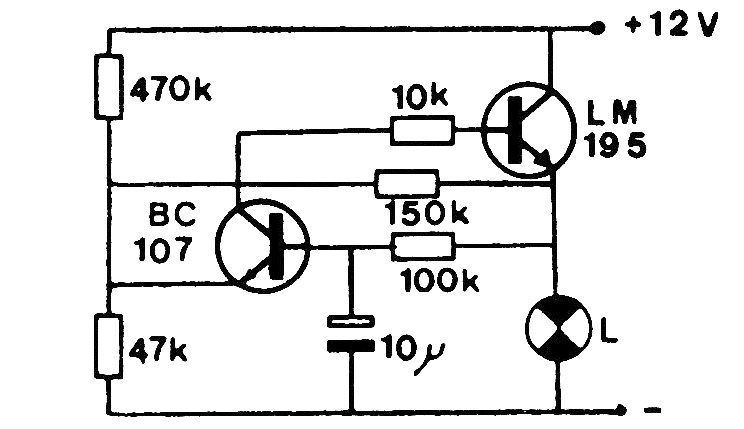

Equivalent transistors can be used in this circuit for automotive applications in the 1980s. The frequency is given by the capacitor and the current of the lamp depends on the LM195 transistor.
