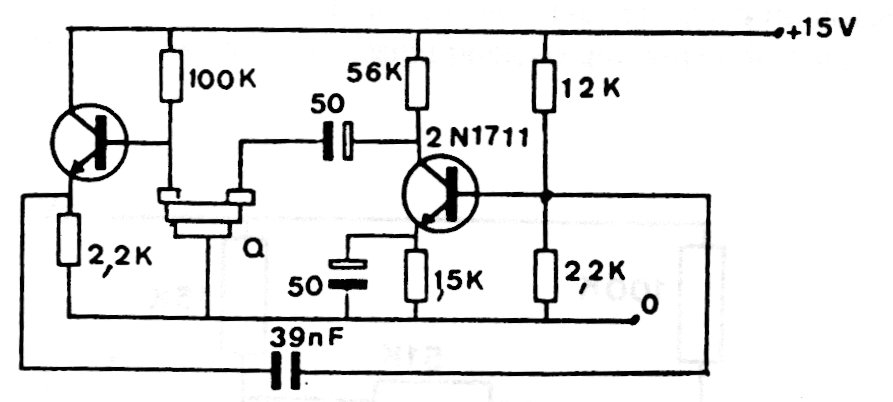

This circuit uses a 455 kHz ceramic resonator or other frequency to set its operating frequency. The first transistor can be a BF494 and the supply must be made with voltages from 12 V. The circuit is from European documentation from the 1980s.
| Clique na imagem para ampliar |
