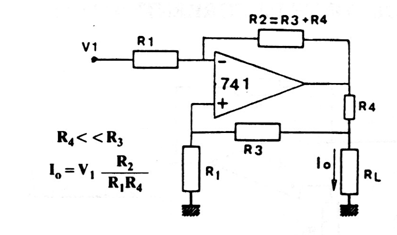

More sophisticated than the one presented in the previous circuit, this unit has a grounded load, which can be important in some applications. The circuit requires a symmetrical source and was found in documentation from the 1980s.
Constant Current Source 741 II (CB19948E)
- Details
- Written by: Newton C. Braga
