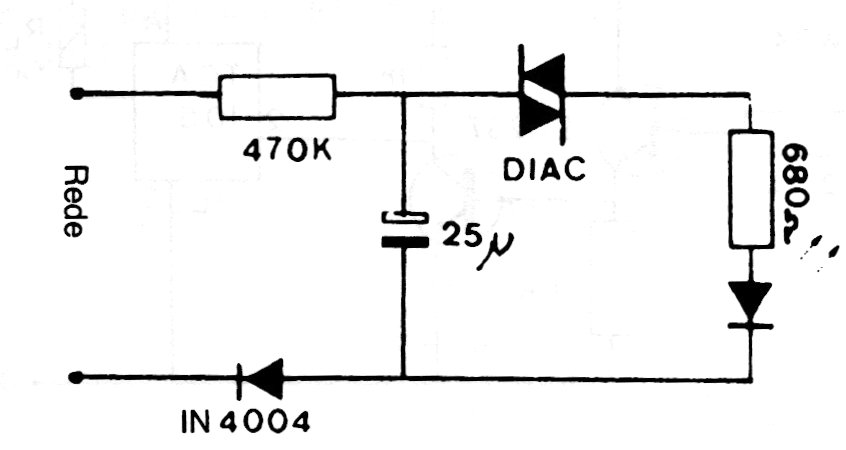

This beacon causes an LED to flash with the mains voltage. The frequency depends on the capacitor. For the 220 V network, the diode must be 1N4007. Consumption is extremely low and any common diac can be used.
| Clique na imagem para ampliar |
Diac LED Beacon (CB19290E)
- Details
- Written by: Newton C. Braga
