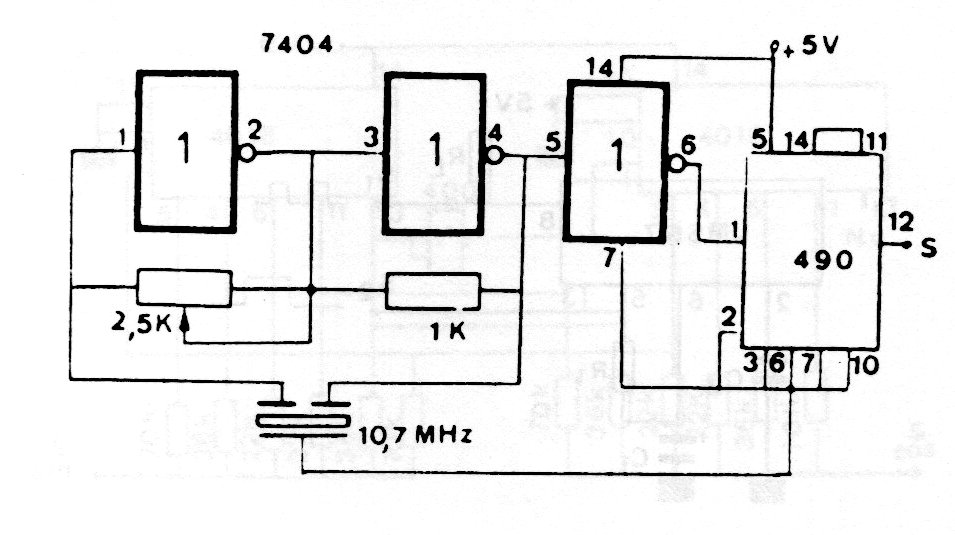

This crystal-controlled circuit was found in European documentation from the 1980s. The circuit can be powered by voltages from 5 to 12 V and the frequency is determined by a 10.7 MHz crystal or resonator. The signal generated is rectangular. The 490 integrated is not very common today.
