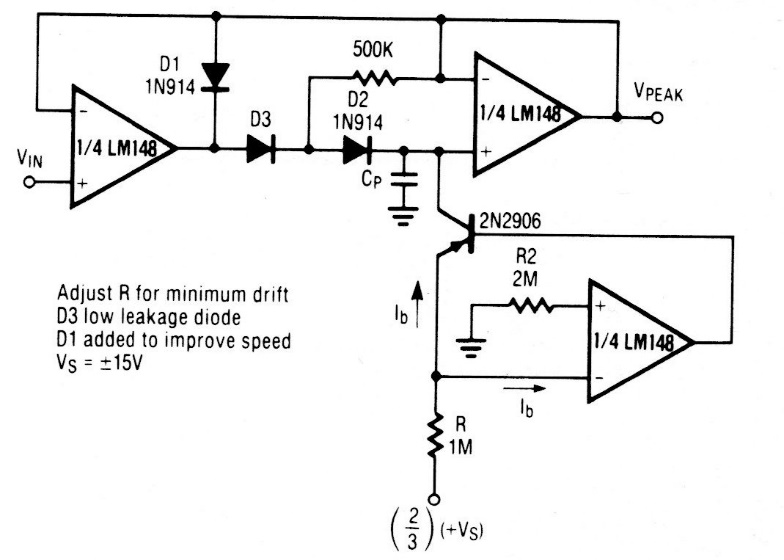

The LM148 and its counterparts are part of a family of low consumption quadruple operators equivalent to the 741. This circuit is from the component's own manual and must be powered by a symmetrical source.
| Clique na imagem para ampliar |
Current Compensated Peak Detector LM148 (CB19703E)
- Details
- Written by: Newton C. Braga
