Timer for Windshield Wiper (CB19869E)

Details
Written by: Newton C. Braga

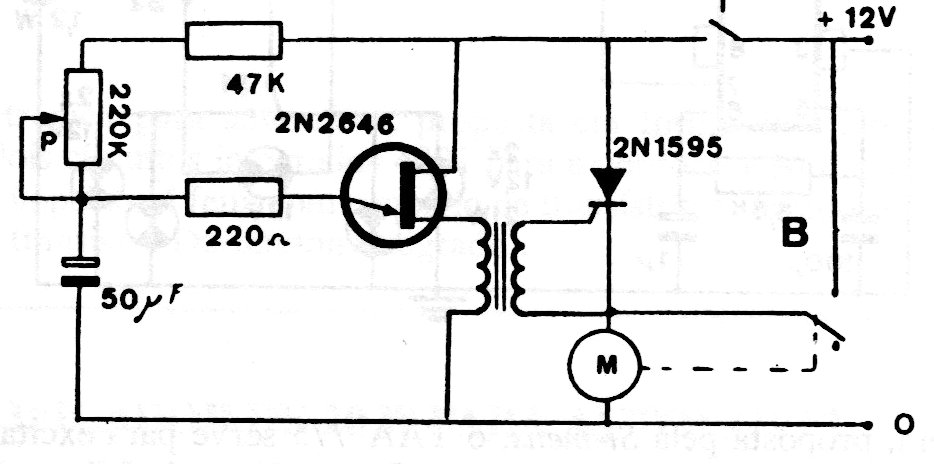

This circuit is from a time when this type of feature was not common in line cars. The pulse transformer has a 1: 1 turn ratio and the SCR admits equivalents.
