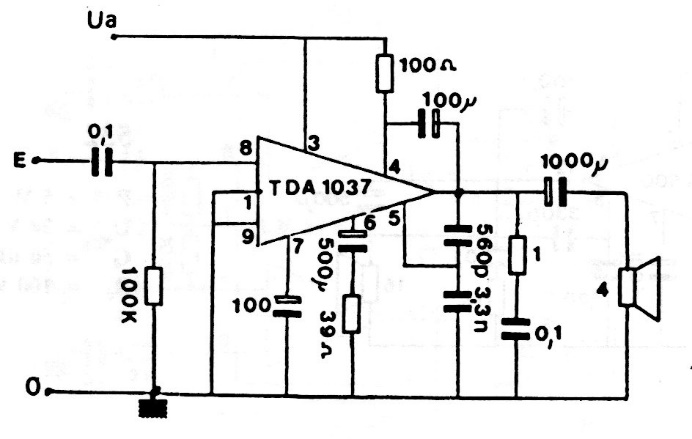

We found this amplifier in a 90's manual. The integrated circuit is not easy to obtain today. The amplifier must be powered with 18 V and has a gain of 40dB. The input resistance is 100 k ohms.
| Clique na imagem para ampliar |
8 W amplifier with TDA1037 (CB19160E)
- Details
- Written by: Newton C. Braga
