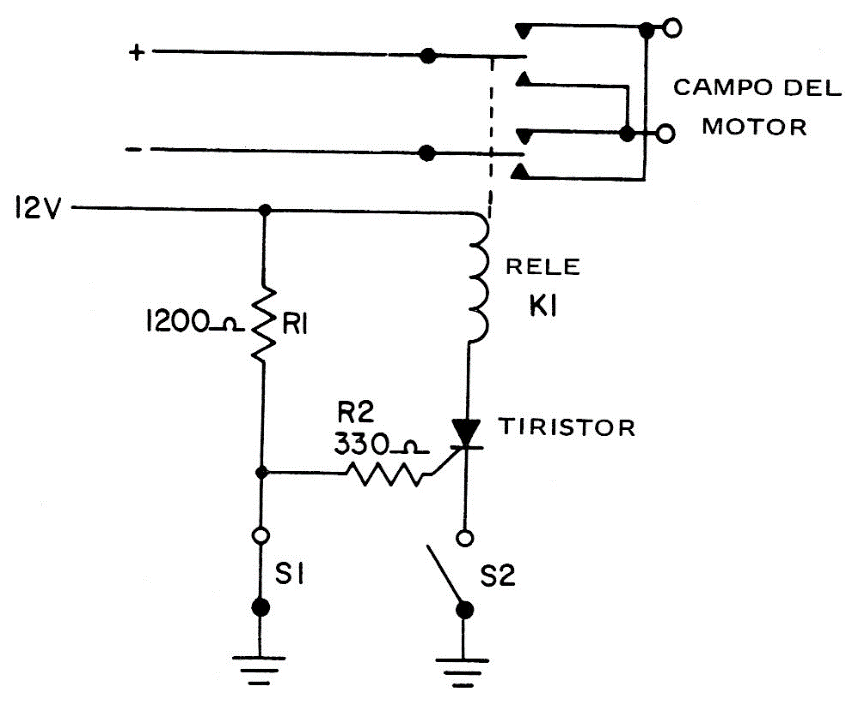

This version of the SCR relay switch circuit was found in an old documentation. In this case, the relay used is 12 V, and the 2 V drop in the SCR must be considered. However, the circuit can work with relays for other voltages.
